SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System

KUWI Wireless Technology

SDI&HDMI® 2000ft / 600m (LOS)

FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI® (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director moni- toring, drone, ropeway camera, steadicam etc.

Input & Output

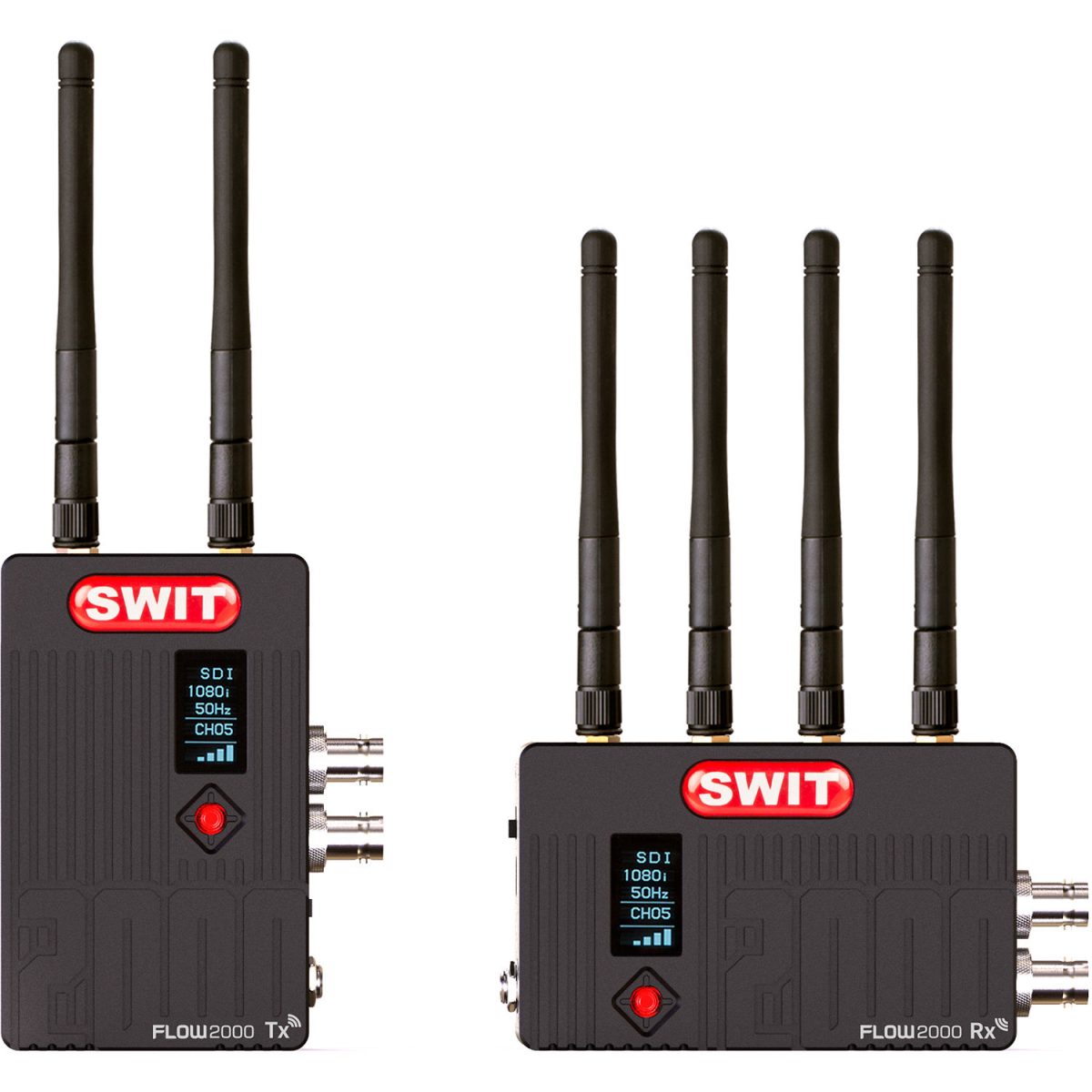

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI® 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
2x 3G/HD-SDI output
1x HDMI® 1.3 output

SDI & HDMI® formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

2000ft/600m Transmission

Strong Wall-cross Performance

FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video trans- mission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI® embedded audio (CH1&2) transmission.

OLED Display & Channel Switch

DFS Comply

The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypt- ed by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

Reclock & Color Reproduction

To ensure the quality of black level, signal noise and color re- production of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.

USB Firmware Update

The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.
